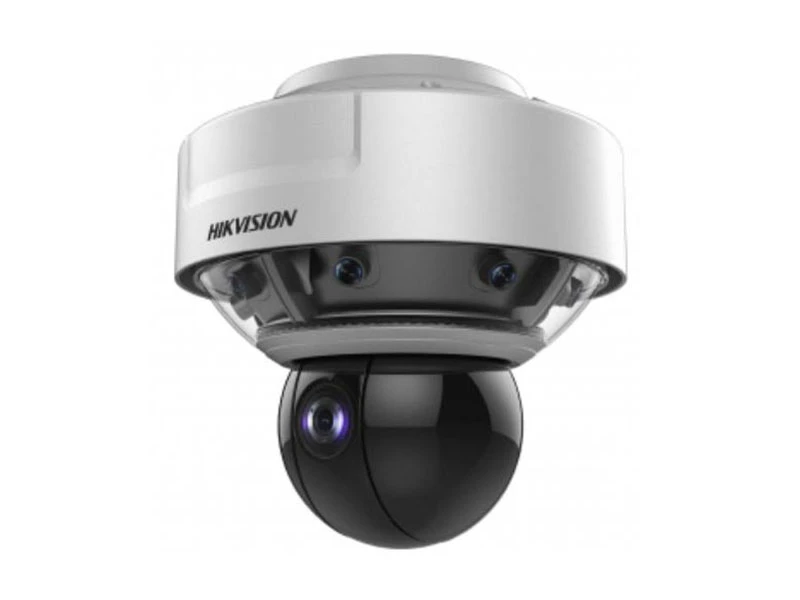

Hikvision DS 2DP1636ZIX D/236(5mm) Panoramik Ip Kamera
Özellikler
Panoramic Camera
- Eight 1/1.8" progressive scan CMOS
- Up to 2×4096×1800 resolution @30fps
- Horizontal field of view: 360°, vertical field of view: 80°
- Min. illumination: Color: 0.005 Lux@(F2.0, AGC ON), B/W: 0.0005 Lux@(F2.0, AGC ON)
Tracking PTZ Camera
- 1/1.8" progressive scan CMOS
- Up to 1920×1080 resolution @30fps
- Pan and tilt range: 360° (Pan), -15° to 90° (Tilt)
- Min. illumination: Color: 0.002 Lux@(F1.5, AGC ON), B/W: 0.0002 Lux@(F1.5, AGC ON), 0 Lux with IR
- 36× Optical Zoom, 16× Digital Zoom
- IR distance: 200m
Teknik Özellikler
| Panoramic Camera | |
| Image Sensor | Four 1/1.8" Progressive Scan CMOS |
| Max. Image Resolution | 4096 × 1800 |
| Min. Illumination | 0.005 Lux@(F2.0, AGC ON), B/W: 0.0005 Lux@(F2.0, AGC ON) |
| Lens | 5.0mm/ F2.0 |
| Angle of View | Horizontal angle of view: 180°, Vertical angle of view: 80° |
| Main Stream | 20:09 |
| 50Hz: 25fps (4096×1800, 3840×1680, 2720×1192) | |
| 60Hz: 30fps (4096×1800, 3840×1680, 2720×1192) | |
| 20:06 | |
| 50Hz: 25fps (4096×1200, 3840×1080, 2720×800) | |
| 60Hz: 30fps (4096×1200, 3840×1080, 2720×800) | |
| Sub Stream | 20:09 |
| 50Hz: 25fps (704×320, 512×232) | |
| 60Hz: 30fps (704×320, 512×232) | |
| 20:06 | |
| 50Hz: 25fps (704×200) | |
| 60Hz: 30fps (704×200) | |
| Third Stream | 20:09 |
| 50Hz: 25fps (2048×896, 1280×560, 704×320, 512×232) | |
| 60Hz: 30fps (2048×896, 1280×560, 704×320, 512×232) | |
| 20:06 | |
| 50Hz: 25fps (2048×600, 1280×376, 704×200) | |
| 60Hz: 30fps (2048×600, 1280×376, 704×200) | |
| Image Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264 | |
| HLC | Support |
| Day& Night | ICR |
| Smart Image Enhancement | Digital WDR, 3D DNR, HLC |
| Tracking PTZ Camera | |
| Image Senso: | 1/1.8’’ Progressive Scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.002 Lux@(F1.5, AGC ON), B/W: 0.0002 Lux@(F1.5, AGC ON), 0 Lux with IR |
| Angle of View | 62.5° to 1.9° (Wide-Tele) |
| Zoom Speed | Approx.6.6s (Optical Wide-Tele) |
| Focal Length | 5.6 to 208mm, 36× optical zoom |
| White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Support |
| BLC | On/Off |
| HLC | Support |
| Day & Night | IR Cut Filter |
| Optical Defog | Support |
| ROI encoding | Support 24 areas with adjustable levels |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (704×576, 640×480, 352×288) |
| 60Hz: 30fps (704×480, 640×480, 352×240) | |
| Third Stream | 50Hz: 25fps (1920×1080, 1280×960, 1280×720, 704×576, 640×480, 352×288) |
| 60Hz: 30fps (1920×1080, 1280×960, 1280×720, 704×480, 640×480, 352×240) | |
| Image Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264 | |
| WDR | Ture WDR |
| Scheduled Task | |
| Pan and Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Pan Manual Speed: 0.1°/s to 210°/s (Configurable), Pan Preset Speed: 240°/s |
| Tilt Range | -15°~ 90° (Auto flip) |
| Tilt Speed | Tilt Manual Speed: 0.1°/s to 150°/s (Configurable), Tilt Preset Speed: 200°/s |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Pattern | 4 patterns, with the recording time not less than 10 minutes per pattern |
| Park Action | Preset / Patrol / Pattern / Auto scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| Power-off memory | Support |
| System Function | |
| IR | PTZ camera: IR distance: 200m; IR brightness and angle are adjustable. |
| Calibration Mode | Manual/ Auto |
| PTZ Linkage | Support |
| One-touch Link | Support |
| Tracking mode | Manual/ Auto/ Mix |
| Number of Targets | Up to 30 targets can be detected at the same time |
| Multiple Target Tracking | Support |
| Smart Detection | Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection |
| Alarm | |
| Alarm I/O | 7.2 |
| Alarm Action | Preset / Patrol / Pattern / SD card recording/ Aux output/ E-map on Client/ Send Email/ Upload to FTP |
| Input & Output | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network | |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM |
| Protocol | |
| Application programming | Open-ended, support ONVIF, support HIKVISION SDK and Third-Party Management Platform |
| System Integration | |
| Menu | English |
| User/Host Level | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Simultaneous Live View | Up to 20 users |
| Fiber Cable | 1 10M/100M FC interface, TX1310 / RX1550nm wavelength, 20 km transmission distance |
| Ethernet | 1 RJ45 100M/1000M Ethernet interface |
| RS485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Onboard Storage | Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording |
| General | |
| Power supply | DC 36V |
| Consumption (without hard disk) | MAX. 105W |
| Working temperature | Outdoor: -40°C to 70°C (-40°F to 158°F) |
| Working humidity | Humidity 90% or less |
| Protection Level | IP66 standard, TVS 6,000V lightning protection, surge protection and voltage transient protection |
| Dimensions (W×D×H) | Φ391.8mm×400.5mm (Φ15.43"×15.77") |
| Weight | Approx. 18kg (39.68lb) |
Hikvision DS 2DP1636ZIX D 236 5mm Panoramik Ip Kamera Pdf Dosyası689.44 KB
Teknik Kısa
Depolama : Var
Ses : Var
