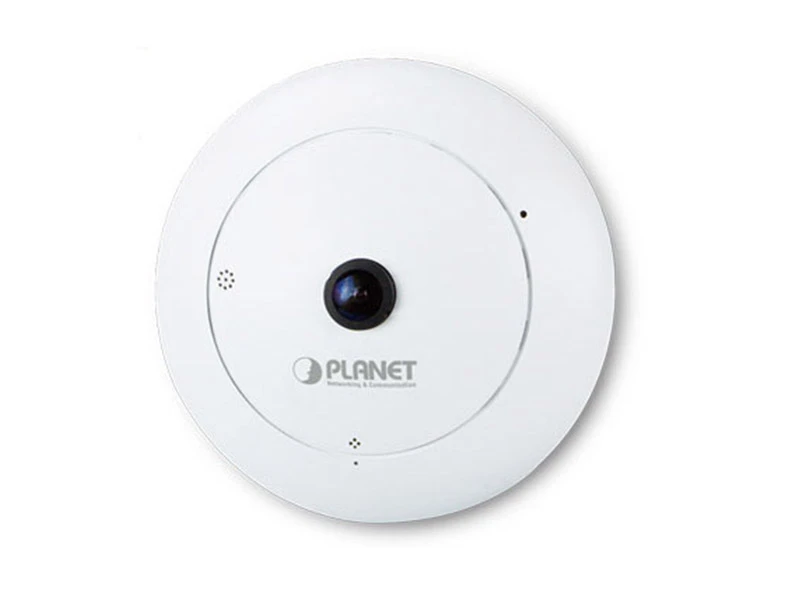

Planet ICA W8500 Panoramik IP Kamera
Özellikler
Camera
- Fish-Eye Lens to bring 360° /180° panoramic wide angle view
- 1/2.5” 5 mega-pixel progressive scan CMOS sensor
- Unique Fish-Eye hardware correction technology
- 1.9 lux minimum illumination at F2.8
- 9 different video modes including digital PTZ function
- Removable IR-cut Filter for Day and Night Function
Video / Audio
- H.264 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- H.264 high profile, main profile and baseline
- Up to 15fps for 1920 x 1920 resolutions
- 2DNR to improve picture quality at low Lux
- WDR Enhancement function strengthens visibility under extremely bright or dark environments
- 2-way audio support with enhanced audio quality
Network and Configuration
- IEEE 802.11b/g/n wireless LAN with WEP and WPA encryptions
- Auto MDI/MDI-X supported
- UPnP® support for network setup and configuration
- RTSP / UPnP / HTTPS protocols selectable
Easy Installation & Management
- Advanced e-PTZ, including preset point
- 10 motion detection areas / E-mail and FTP alert
- Micro SD card local video recording supported
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 Central Management Software supported
Teknik Özellikler
| Camera | |
| Image Device | 1/2.5" 5 mega progressive scan CMOS image sensor |
| Lens | FOV=186±4° (D/H/V), F=2.8, f=1.05mm |
| Mechanical IR-cut Filter | |
| Angle of view: 360 degrees view angle | |
| Min Illumination | 1.9 Lux @ F2.8, without IRE (Color) |
| 0.1 Lux @ F2.8, without IRE (B/W) | |
| Effective Pixels | 1920 x 1920 pixels (4:3) |
| Video | |
| Video Encoder | H.264 / M-JPEG / MPEG |
| Video Resolution | H.264: |
| 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 | |
| M-JPEG: | |
| 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 | |
| MPEG4: | |
| 1920 x 1920 / 1920 x 1080 / 1600 x 1200 / 1440 x1080 / 1280 x 1024 / 800 x 600 / 640 x 480 / 320 x 240 | |
| Frame Rate | Up to 15fps for 1920 x 1920 resolutions |
| Image Setting | Day / Night Mode |
| 2D noise reduction | |
| WDR | |
| Brightness, Saturation, Contrast, Sharpness | |
| Rotate/Mirror | |
| Text, time and date overlay | |
| Streaming | Streaming over UDP, TCP, or HTTP |
| M-JPEG streaming over HTTP (server push) | |
| Controllable frame rate and bandwidth | |
| Constant and variable bit rate (M-JPEG / H.264) | |
| Simultaneously multi-profile streaming | |
| ROI | |
| Rate Control | CBR (Constant Bit Rate) |
| VBR (Variable Bit Rate) | |
| UI Layout | Source view (1O) |
| 180° Single broad view (1P wall) | |
| 360° Panoramic view (1P ceiling) | |
| 360° Quad view (4R) | |
| 360° Double broad view (2P) | |
| 180° Triple view (1P2R) | |
| 360° Triple view (1P2R) | |
| Triple with Source view (102R) | |
| Quad with Source view (103R) | |
| Audio | |
| Audio Streaming | 2-way audio |
| Audio Compression | RTSP: G.711 64kbps |
| Microphone | Built-in microphone |
| Speaker | Built-in speaker |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.11b/g/n | |
| Network Protocol | HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF (Profile S), Multicast |
| Antenna connector | 1x2db dipole antenna |
| Frequency | 2.4GHz |
| RF Transmission Power | OFDM: 13dBm |
| CCK: 17dBm | |
| Output Power | 802.11n: 12dBm (default) +/- 1dBm |
| 802.11g: 14dBm (default) +/- 1dBm | |
| 802.11b: 17dBm (default) +/- 1dBm | |
| Data Rate | 802.11n: up to 150Mbps |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps | |
| 802.11b: 1, 2, 5.5, 11Mbps | |
| Receive Sensitivity | 802.11b (11Mbps): |
| CCK@8% PER = -88dBm | |
| 802.11g (54Mbps): | |
| OFDM @ 10% PER = -72dBm | |
| 802.11n Draft 6.0: | |
| HT20 @ 10% PER = -66 dBm | |
| HT40@ 10% PER= -61dBm | |
| Security | Password protection, Https encryption, user access log |
| Users | Depending on streaming data rate used |
| System Integration | |
| Application Programming Interface | Open API for software integration |
| ONVIF | |
| Alarm Triggers | Intelligent video motion detection |
| Alarm Events | File upload via FTP, e-mail or Micro SD card |
| Notification via e-mail | |
| Environment | |
| Power Requirements | 12V DC, 2A |
| Power Consumption | Max. 6W |
| Operating Temperature | 0 ~ 50 degrees C |
| Operating Humidity | 20 ~ 80% (non-condensing) |
| Weight | 324g |
| Dimensions (Φ x H) | 194 x 49 mm |
| Emission | CE, FCC |
| Connectors | 10/100Mbps Ethernet, RJ-45 |
| DC power jack | |
| Terminal block for 1 alarm input and 1 output | |
| Audio in | |
| Audio out | |
| Micro SD/SDHC card (max. 32GB, Class 6) | |
| Factory default reset button | |
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
