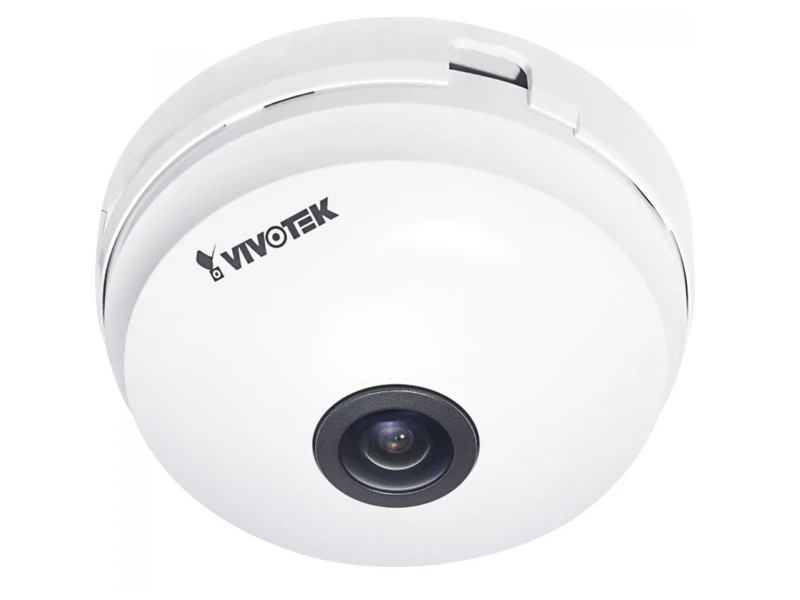

Vivotek FE8180 Panoramik Ip Kamera
Özellikler
- 5-Megapixel CMOS Sensor
- 30fps @ 1080p Full HD
- 1.57 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- ePTZ for Data Efficiency
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Support Local or Client Side Dewarping
- 3D Noise Reduction
- 15° Tilt Mount Available
- Support Installation with Conduit Box
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/2.5" Progressive CMOS |
| Maximum Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f=1.57 mm |
| Aperture | F=2.2 |
| Field of View | 180° (Horizontal) |
| 180° (Vertical) | |
| 180° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.18 Lux @ F2.2 (Color) |
| Pan/tilt/zoom Functionalities | ePTZ: |
| 12x digital zoom (12x on IE plug-in) | |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | 15 fps @ 1920x1920 |
| 30 fps @ 1920x1080 | |
| In both compression modes | |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | Above 62 dB |
| Dynamic Range | 57 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Time stamp, text overlay, flip & mirror |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | |
| Scheduled profile settings, 3D noise reduction | |
| Pixel calculator | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X. |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | Max. 3.6 W |
| Dimensions | Ø: 90 mm x 37 mm |
| Weight | Net: 135g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F) |
| Working Temperature: -10°C ~ 40°C (14°F ~ 104°F) | |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) |
| Internet Explorer 7.x, 8.x, 9.x, 10.x, 11.x | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others | Quick installation guide, warranty card, alignment sticker, screws pack, mounting bracket, software CD |
Video
Teknik Kısa
Çözünürlük : 5MP
Depolama : Var
