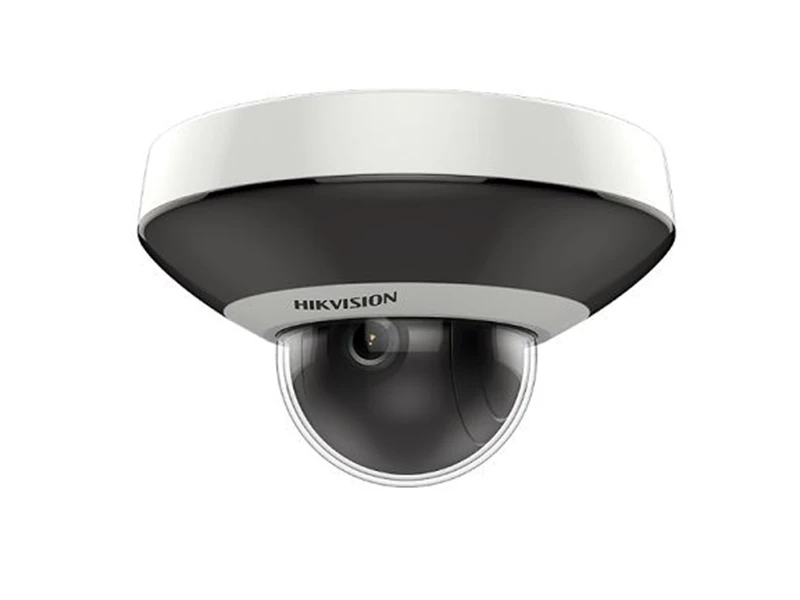

Hikvision DS 2DE1A400IW DE3 IR IP PTZ Kamera

Özellikler

1/3" progressive scan CMOS
Up to 2560 × 1440@30fps resolution
Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
16× digital zoom
120 dB WDR, 3D DNR, EIS, Regional Exposure, Regional Focus
Up to 15 m IR distance
12 VDC, PoE (802.3af)
IP66
Support H.265+/H.265 video compression
Support ONVIF, ISAPI, CGI, HIKVISION SDK and Third-Party Management Platform

Teknik Özellikler

Camera
Image Sensor	1/3" progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.005 Lux @(F1.6, AGC ON)
	B/W: 0.001 Lux @(F1.6, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
WDR	120dB
Shutter Time	1/1 to 1/30,000s
Day& Night	ICR
Digital Zoom	16×
Privacy Masking	24 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	2.8 mm, 4 mm, optional
Angle of View	2.8 mm: horizontal FOV 101.6°; vertical FOV 56°, diagonal FOV 120°
Angle of View	4mm: horizontal FOV 80.7°; vertical FOV 43.5°, diagonal FOV 95°
Minimum Working Distance	2.8 mm: > 0.7 m; 4 mm: > 1 m
Aperture Range	F1.6
Pan & Tilt
Pan Range	° to 330°
Pan Speed	Configurable, from 0.1°/s to 100°/s,
Pan Speed	Preset speed: 100°/s
Tilt Range	Tilt: 0°~90°
Tilt Speed	Configurable, from 0.1°/s to 100°/s,
Tilt Speed	Preset speed: 100°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Power-off Memory	Support
Park Action	Preset
PTZ Position Display	ON/OFF
Infrared
IR irradiation distance	15m
Input & Outpu
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Main Stream	60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode	OFF/Audio input/Audio output
Three-Stream	Support
Mini SD Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and User
Hik-Connect	Support
General
Power Supply	12 VDC & PoE
Power Consumption	Max.: 12W
Working Temperature/Humidity	-10°C to 55°C (-14°F to 131°F)
Protection Level	IP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy, PC, PC+ABS
Dimensions	Φ 124.3 mm × 76.9 mm (Φ 4.89" × 3.03")
Weight (approx.)	Approx. 450 g (0.99 lb.)
