Açıklama

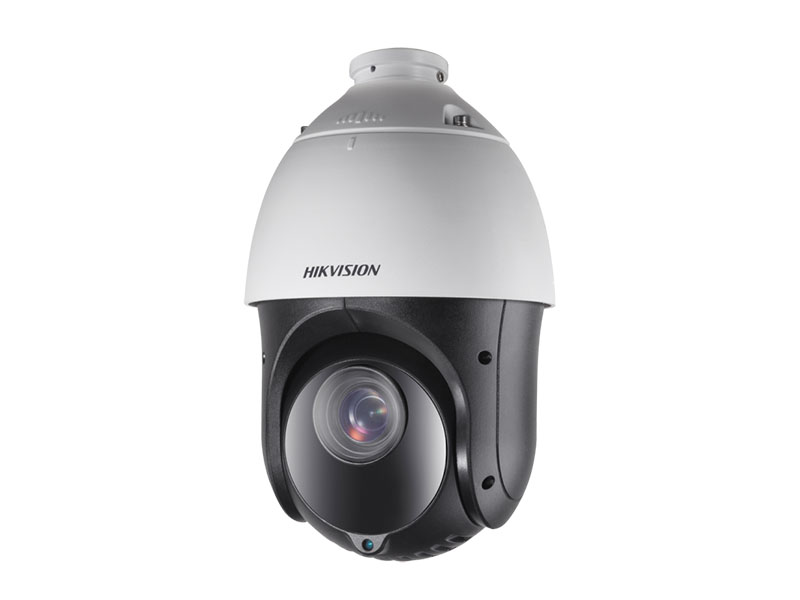

Hikvision DS 2DE4220IW DE IP HD Speed Dome Kamera
Özellikler
- 1/2.8" Progressive Scan CMOS
- 2MP Full HD real-time resolution (1920x1080)
- 20X Optical zoom, 16X digital zoom
- 360° Endless Pan Range
- 4.7mm ~ 94mm Focal Length 20x via Optical Zoom
- 128GB Micro SD card slot, Support Edge recording
- 8 Patrols with up to 32 presets on each.
- 8 Programmable Privacy Masks
- 300 Presets
- Alarm input/output
- Audio inputs/outputs for 2-way audio (mic & speakers reqd)
- PoE (20w) OR 12vDC power (PSU optional extra)
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, lux with IR |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | 1-1/10,000s |
| Day& Night | ICR |
| Digital Zoom | 16X |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 4.7-94.0mm, 20x |
| Zoom Speed | Approx.3s(Optical Wide~Tele) |
| Angle of View | 58.3-3.2 degree (Wide~Tele) |
| Minimum Working Distance | 10~1,000mm(Wide~Tele) |
| Aperture Range | F1.6~F3.5 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s |
| Tilt Range | -15°-90° (Auto Flip ) |
| Tilt Speed | Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Power loss recovery | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation distance | 100m |
| IR irradiation angle | Adjustable by zoom |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Frame Rate | 50Hz:25fps(1920×1080), 25fps (1280×720), |
| 60Hz:30fps(1920×1080), 30fps (1280×720) | |
| Main Stream | 50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; |
| 60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) | |
| Sub Stream | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) |
| 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) | |
| Third Stream | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| Video Compression | H.264 / MJPEG |
| ROI encoding | Support 4 areas with adjustable levels |
| No. of Simultaneous Users | Up to 20 users |
| Dual Stream | Support |
| Mini SD Card | Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording |
| Security Measures | User authentication (ID and PW), |
| Host authentication (MAC address) | |
| IP address filtering | |
| Hik-Connect | Support |
| Client GUI | |
| Date & Time Display | Time: Week: Date, 6 formats on the Client |
| Client | Support iVMS-4200 |
| Web Browser | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
| General | |
| Menu Language | English |
| Power Supply | 12 VDC &POE (802.3at,class4) |
| Power Consumption | Max.20W |
| Working Temperature/Humidity | -30°C ~ 65°C (-22°F ~ 149°F) |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Mounting | Various mounting modes optional |
| Dimensions | Φ164.5(mm)×295(mm) |
| Weight (approx.) | 2kg (4.41lbs) |
| Mount Option | Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ |
Hikvision DS 2DE4220IW DE IP HD Speed Dome Kamera Pdf Dosyası818.74 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
