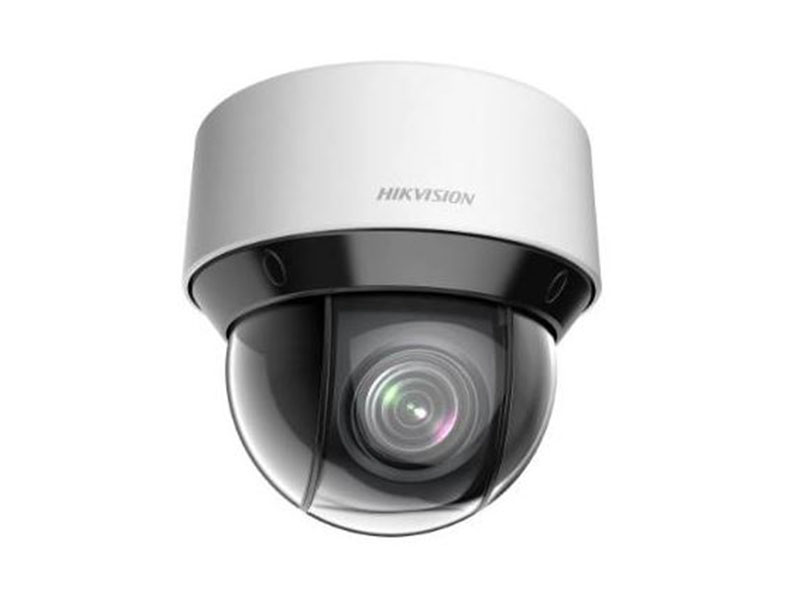

Hikvision DS 2DE4A204IW DE IP Speed Dome Kamera
Özellikler
- 1/1.9" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Ultra-low light:
Color: 0.002 Lux @(F1.6, AGC ON)
B/W: 0.0002 Lux @(F1.6, AGC ON)
0 Lux with IR - 4× optical zoom, 16× digital zoom
- Digital Defog, EIS, 3D DNR, BLC, HLC, WDR
- Up to 50 m IR distance
- 12 VDC & PoE+ (802.3at, class4)
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.002 Lux @(F1.6, AGC ON) |
| B/W: 0.0002Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | 1/1 to 1/30,000s |
| Day& Night | ICR |
| Privacy Masking | 8 privacy masks programmable |
| Digital Zoom | 16× |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 8 mm to 32 mm, 4× Optical |
| Zoom Speed | Approx. 2.5 s (optical lens, wide-tele) |
| Angle of View | 42.2° to 13.5° (wide-tele) |
| Minimum Working Distance | 10 to 1500mm (wide-tele) |
| Aperture Range | F1.6 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Speed | Configurable, from 0.1°/s to 300°/s |
| Preset Speed: 350°/s | |
| Tilt Range | -5°~90° (Auto Flip ) |
| Tilt Speed | Configurable, from 0.1°/s to 160°/s |
| Preset Speed: 200°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| Client GUI | |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| General | |
| Power Consumption | Max.: 18W (IR light 5W Max.) |
| Working Temperature/Humidity | Outdoor: -30°C to 65°C (-22°F to 149°F) |
| Humidity:≤ 90% | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Dimensions | Φ169.39mm ×161mm (Φ6.67"×6.34") |
| Weight (approx.) | Approx. 2.45kg (5.40lb) |
Hikvision DS 2DE4A204IW DE IP Speed Dome Kamera Pdf Dosyası923.74 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
