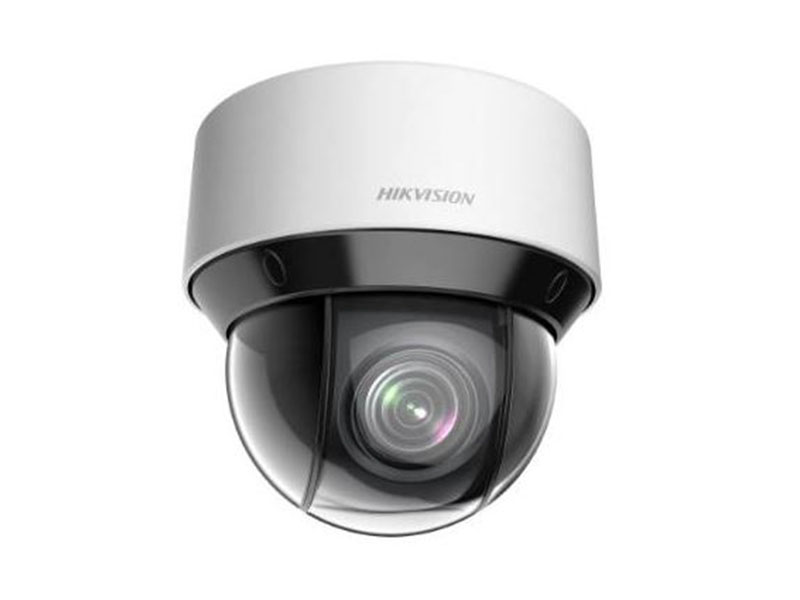

Hikvision DS 2DE4A215IW DE IP Speed Dome Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination:
- Color: 0.005 Lux @(F1.6, AGC ON)
- B/W: 0.001 Lux @(F1.6, AGC ON)
- 0 Lux with IR
- 15× optical zoom, 16× digital zoom
- 120dB WDR, 3D DNR, HLC, BLC, Smart IR
- Up to 50 m IR distance
- 12 VDC & PoE+ (802.3at, class4)
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Effective Pixels | 1920 × 1080 |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| WDR | 120dB |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Masking | 24 privacy masks programmable; optional multiple colors and mosaics |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 5 mm to 75 mm, 15× optical |
| Zoom Speed | Approx. 2.4 s (optical lens, wide-tele) |
| Angle of View | Horizontal field of view: 53.8° to 4.0° (wide-tele) |
| Vertical field of view: 31.9° to 2.3° (wide-tele) | |
| Diagonal field of view: 60.4° to 4.6°(wide-tele) | |
| Minimum Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.6 to F3.5 |
| Pan & Tilt | |
| Pan Range | 360° endless |
| Pan Speed | Configurable, from 0.1°/s to 100°/s |
| Preset Speed: 100°/s | |
| Tilt Range | From -5° to 90°(Auto-flip) |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s |
| Preset Speed: 100°/s | |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power loss recovery | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Freeze Frame | Support |
| Infrared | |
| IR irradiation distance | Up to 50 m |
| Input & Output | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network | |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 50fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) | |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Image Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| No. of Simultaneous Users | Up to 20 users |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR |
| User/Host Level | Up to 32 users. |
| 3 levels: Administrator, Operator and User | |
| General | |
| Power Supply | 12V DC |
| Power Consumption | Max.: 18 W (IR light 5 W Max.) |
| Working Temperature/Humidity | Working Temperature: -30°C to 65°C (-22°F to 149°F) |
| Working Humidity: ≤ 90% | |
| Protection Level | IP66, TVS 4000V lightning protection, surge protection and voltage transient protection |
| Dimensions | Φ 169 mm × 161 mm (Φ 6.65" × 6.34") |
| Weight (approx.) | Approx. 2.45 kg (5.40 lb) |
Teknik Kısa
Çözünürlük :
2MP (1080P)
