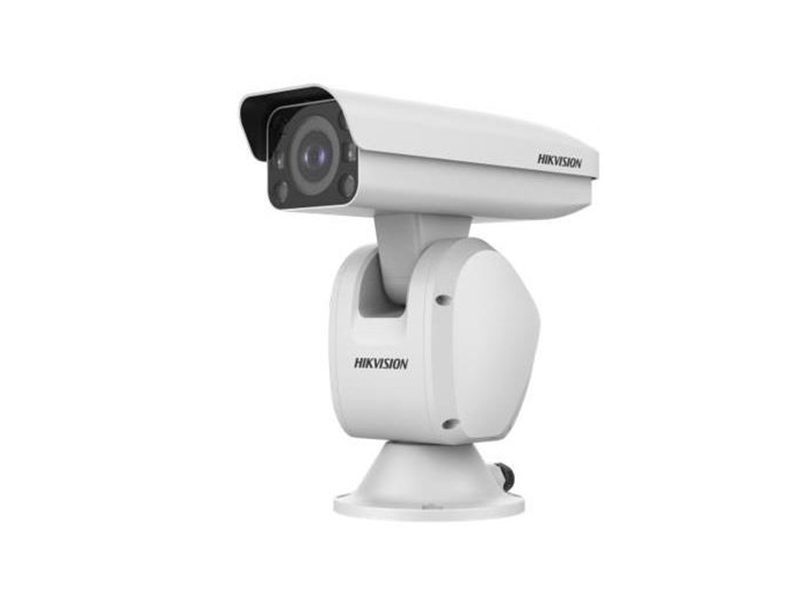

Hikvision DS 2DY7236IW A IR IP PTZ Kamera

Özellikler

1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
36× optical zoom, 16× digital zoom
Digital WDR, 3D DNR, HLC, BLC
24 VAC
Support up to 150 m IR distance
Support H.265+/H.265 video compression

Teknik Özellikler

Camera
Image Sensor	1/1.8" progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Minimum Illumination	Color: 0.002 Lux @(F1.5, AGC ON)
	B/W: 0.0002 Lux @(F1.5, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	DWDR
Shutter Time	1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Masking	8 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	5.7 mm to 205 mm, 36× Optical
Zoom Speed	Approx. 4.4 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 59.8° to 2.0° (wide-tele)
	Vertical field of view: 33.6° to 1.1° (wide-tele)
	Diagonal field of view: 68.6° to 2.3° (wide-tele)
Minimum Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F1.5 to F4.5
Pan & Tilt
Pan Speed	Configurable, from 0.1°/s to 150°/s, Preset Speed: 150°/s
Tilt Range	-10° ~ 90° (auto fl ip )
Tilt Speed	Configurable, from 0.1°/s to 100°/s, Preset Speed: 100°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets for each patrol
Pattern	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Infrared
IR irradiation distance	150m
IR irradiation angle	Adjustable by zoom
Alarm
Alarm Input	2
Input & Output
CVBS Output	1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
Main Stream	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream	50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)
Sub Stream	60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream	50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Third Stream	60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Three-Stream	Support
Mini SD Card	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply	24V AC
Power Consumption	Max. 55 W
Working Temperature/Humidity	Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F)
Working Temperature/Humidity	Humidity: ≤ 90%
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy ADC12
Dimensions	Φ181 mm × 396 mm × 377.5 mm (Φ 7.13" × 15.59" × 14.86")
Weight (approx.)	Approx. 7.6 kg (16.76 lb)
