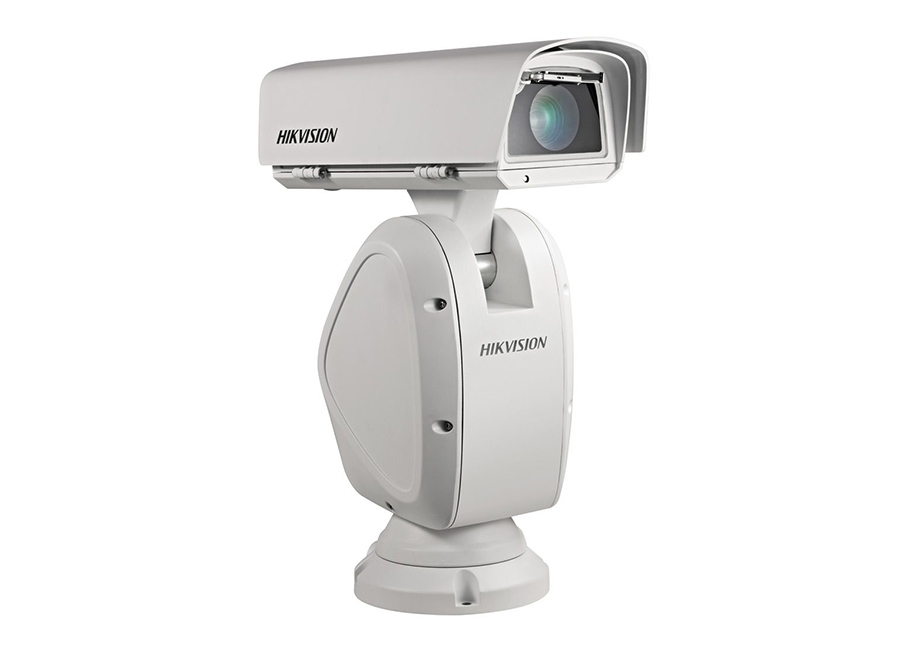

Hikvision DS 2DY9236X A IP PTZ Kamera

Özellikler

1/1.9" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination
-Color 0.002 Lux @(F1.5, AGC ON)
-B/W 0.0002 Lux @(F1.5, AGC ON)
36× optical zoom, 16×digital zoom
120dB WDR, 3D DNR, HLC, BLC, Smart IR
24 VAC
Support H.265+/H.265 video compression

Teknik Özellikler

Camera
Image Sensor	1/1.9" progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Minimum Illumination	Color 0.002 Lux @(F1.5, AGC ON)
	B/W 0.0002 Lux @(F1.5, AGC ON)
	0 Lux with IR
White Balance	Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	120dB
Shutter Time	1/1 s to 1/30,000 s
Day& Night	ICR
Digital Zoom	16×
Privacy Mask	24 programmable privacy masks
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	5.6 mm to 207 mm, 36× optical zoom
Zoom Speed	Approx. 4.4 s (optical lens, wide-tele)
Field of View	Horizontal field of view 59.8° to 2.0° (wide-tele)
	Vertical field of view 33.6° to 1.1° (wide-tele)
	Diagonal field of view 68.6° to 2.3° (wide-tele)
Minimum Working Distance	10 mm to 1500 mm (wide-tele)
Aperture Range	F1.5 to F4.5
Pan & Tilt
Pan Speed	Configurable, from 0.1°/s to 100°/s, Preset Speed 100°/s
Tilt Range	-90°-40° (Auto Flip )
Tilt Speed	Configurable, from 0.1°/s to 40°/s, Preset Speed 100°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets for each patrol
Pattern	4 pattern scans, record time over 10 minutes for each scan
Power-off Memory	Support
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PTZ Position Display	ON/OFF
Alarm
Alarm Input	7 Inputs
Alarm Output	2
Input & Output
CVBS Output	1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
Audio Input	1-ch audio input
Audio Output	1-ch audio output
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution	1920×1080
Main Stream	50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
	50fps (1920 × 1080, 1280 × 960, 1280 × 720);
	60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
	60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream	50Hz 25fps(704×576), 25fps(640×576), 25fps(320×288)
Sub Stream	60Hz 30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream	50Hz 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Third Stream	60Hz 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression	Main Stream H.265+/H.265/H.264+/H.264
	Sub-Stream H.265/H.264/MJPEG
	Third Stream H.265/H.264/MJPEG
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Three-Stream	Support
Storage	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
User/Host	Up to 32 users, 3 levels Administrator, Operator and User
Security Measures	User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering
General
RS-485 Protocols	HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply	24V AC
Power Consumption	Max. 70 W
Working Temperature/Humidity	Temperature Outdoor -40°C to 70°C (-40°F to 158°F)
Working Temperature/Humidity	Humidity ≤ 90%
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material	Aluminum alloy ADC12
Dimensions	460 mm × 390 mm × 491 mm (18.11" × 15.35" × 19.33")
Weight (approx.)	Approx. 13 kg (28.66 lb)
