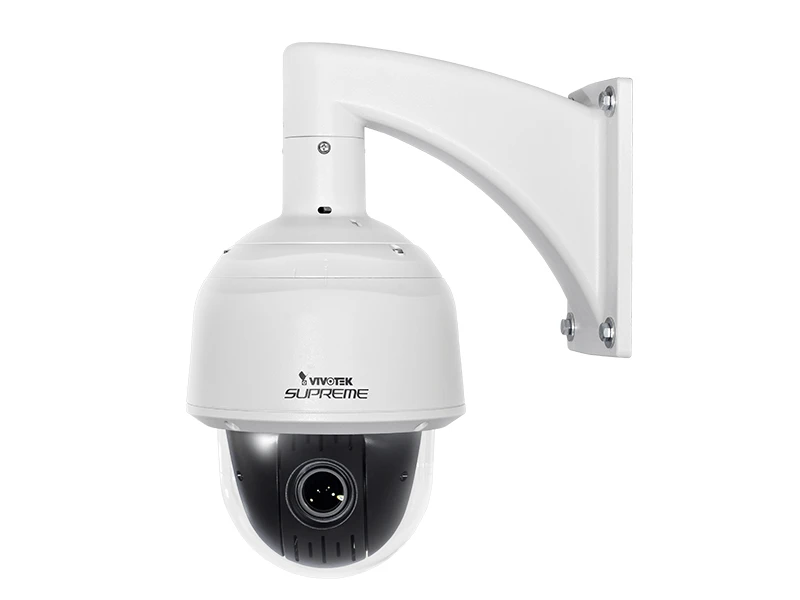

Vivotek SD8333E AO IP HD Speed Dome Kamera
Özellikler
- 720p HD CMOS Sensor
- 60 fps @ 720p HD
- 30x Zoom Lens
- Removable IR-cut Filter for Day & Night Function
- 360° Continuous Pan and 220° Tilt
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Weather-proof IP67-rated and NEMA4X Housing
- -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
- Audio Detection for Instant Alerts
- Auto Tracking for Moving Objects
- Built-in 802.3at Compliant PoE Plus
- 3D Privacy Masks for Additional Protection
- Built-in SD/SDHC/SDXC Card Slot for On-board Storage
- Defog
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1280x720 |
| Lens Type | 30x Optical Zoom, Auto Focus |
| Focal Length | f = 4.3~129 mm (30x zoom) |
| Aperture | F1.6 ~ F4.7 |
| Auto-iris | DC-iris |
| Field of View | 2.1° ~ 57.8° (Horizontal) |
| 1.2° ~ 34.5° (Vertical) | |
| 2.4° ~ 67.3° (Diagonal) | |
| Shutter Time | 1 sec. to 1/10,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.15 Lux @ F1.6 (Color) |
| 0.0048 Lux @ F1.6 (B/W) | |
| Pan Speed | 0.05° ~ 450° / sec |
| Pan Range | 360 endless |
| Tilt Speed | 0.05° ~ 450° / sec |
| Tilt Range | 220° (-110° ~ +110°) |
| Preset Locations | 256 preset locations, 40 presets per tour |
| Pan/tilt/zoom Functionalities | 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Auto pan mode | |
| Auto patrol mode | |
| On-board Storage | SD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG & MPEG-4 |
| Maximum Frame Rate | H.264: |
| 60 fps @ 1280x720 | |
| MPEG-4: | |
| 60 fps @ 1280x720 | |
| MJPEG: | |
| 60 fps @ 1280x720 | |
| (Up to 30 fps in WDR mode) | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | Above 50 dB |
| Dynamic Range | 110 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Zoom enhancement for better image quality under limited bandwidth | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24) | |
| Scheduled profile settings | |
| Defog | |
| Audio | |
| Audio Capability | Audio input/output (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | External microphone input |
| External line output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Auto-Tracking | Auto-tracking on moving object |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| AC 24V power input | |
| Digital input*4 | |
| Digital output*2 | |
| RS-485 for PTZ control (PelcoD protocol, Baud rate 2400) | |
| LED Indicator | System power and status indicator |
| Power Input | PoE plus (IEEE 802.3at compliant) |
| High Power PoE | |
| AC 24V | |
| Power Consumption | PoE plus: |
| Max. 19W | |
| AC 24V: | |
| Max. 48W (heater on) | |
| Max. 19W (heater off) | |
| High Power PoE: | |
| Max. 48W (heater on) | |
| Max. 19W (heater off) | |
| Dimensions | Ø: 205 mm x 321 mm |
| Weight | Net: 3974 g |
| Casing | Weather-proof IP67- and NEMA 4X-rated mated housing |
| Built-in electrical dehumidifier device (SD8333-EM) | |
| Safety Certifications | CE, FCC Class A, VCCI, C-Tick, NEMA 4X, UL |
| Operating Temperature | -5°C ~ 55°C (PoE Plus) |
| -40°C ~ 55°C (AC 24V) | |
| -40°C ~ 55°C (High Power PoE) | |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~10 (Streaming only) |
| Internet Explorer 9.x or 10.x | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others | Wall mount bracket, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, software CD, desiccant bag |
Video
Vivotek SD8333E AO IP HD Speed Dome Kamera Pdf Dosyası588.57 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 1MP (720P)
Irled : Var
