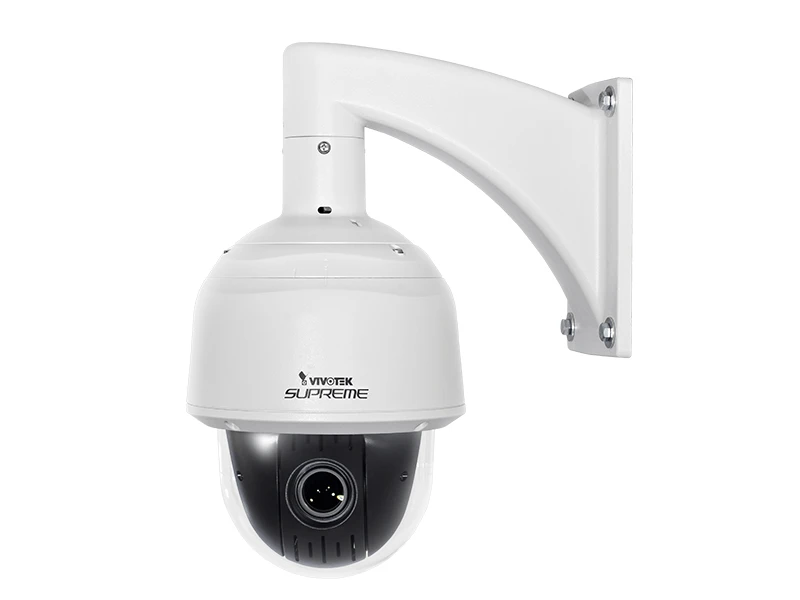

Vivotek SD8364E AO IP HD Speed Dome Kamera

Özellikler

1080p Full HD SONY CMOS Sensor
30 fps @ 1080p Full HD; 60 fps @ 720p HD
30x Zoom Lens
Removable IR-cut Filter for Day & Night Function
360° Continuous Pan and 220° Tilt
Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
WDR Pro for Unparalleled Visibility in High Contrast Environments
Weather-proof IP67-rated and NEMA4X Housing
-40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
Audio Detection for Instant Alerts
Auto Tracking for Moving Objects
Built-in 802.3at Compliant PoE Plus
3D Privacy Masks for Additional Protection
Built-in SD/SDHC/SDXC Card Slot for On-board Storage
Defog

Teknik Özellikler

System Information
CPU	Multimedia SoC (System-on-Chip)
Flash	128 MB
RAM	256 MB
Camera Features
Image sensor	1/2.8" Progressive CMOS
Maximum Resolution	1920x1080 (2MP)
Lens Type	30x optical zoom, auto focus
Focal Length	f = 4.3 ~ 129 mm (30x zoom)
Aperture	F1.6 ~ F4.7
Auto-iris	DC-iris
Field of View	2.3° ~ 64° (horizontal)
	1.3° ~ 36° (vertical)
	2.6° ~ 73° (diagonal)
Shutter Time	1/1 sec. to 1/10,000 sec.
WDR Technology	WDR Pro
Day & Night	Removable IR-cut filter for day & night function
Minimum Illumination	0.5 Lux @ F1.6, 30 IRE (Color), 1/30s
	0.03 Lux @ F1.6, 30 IRE (B/W), 1/30s
	0.14 Lux @ F1.6, 50 IRE (Color), 1/5s
	0.01 Lux @ F1.6, 50 IRE ( B/W ), 1/5s
Pan speed	0.05° ~ 450° / sec.
Pan range	360° endless
Tilt speed	0.05° ~ 450° / sec.
Tilt range	220° ( -110° ~ +110° )
Preset Locations	256 preset locations, 40 presets per tour
Pan / Tilt / Zoom	48x digital zoom (4x on IE plug-in, 12x built-in)
	Auto pan mode
	Auto patrol mode
On-board Storage	SD/SDHC/SDXC card slot
Video
Compression	H.264, MJPEG & MPEG-4
Maximum Frame Rate	H.264: 30 fps @ 1920x1080, 60 fps @ 1280x720
	MPEG-4: 30 fps @ 1920x1080, 60 fps @ 1280x720
	MJPEG: 30 fps @ 1920x1080, 60 fps @ 1280x720
	(Up to 30/60 fps in WDR mode)
Maximum Streams	4 simultaneous streams
S/N Ratio	Above 50 dB
Dynamic Range	Above 90 dB
Video Streaming	Adjustable resolution, quality and bit rate
Video Streaming	Zoom enhancement for better image quality under limited bandwidth
Image Settings	Adjustable image size, quality and bit rate
	Time stamp, text overlay, flip & mirror
	Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24)
	Scheduled profile settings
	Defog
Audio
Audio Capability	Audio input / Audio output (Full duplex)
Compression	AAC
	G.711
	G.726
Interface	External microphone input
Interface	External line output
Network
Users	Live viewing for up to 10 clients
Protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface	10Base-T / 100BaseTX Ethernet (RJ-45)
Interface	* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF	Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection	Triple-window video motion detection
Auto-Tracking	Auto-tracking on moving object
Alarm and Event
Alarm Triggers	Video motion detection, manual trigger, periodical trigger, system boot, recording notification, audio detection
Alarm Events	Event notification using digital output, HTTP, SMTP, FTP and NAS server
Alarm Events	File upload via HTTP, SMTP, FTP and NAS server
General
Connectors	RJ-45 cable connector for Network/PoE connection
	Audio input
	Audio output
	AC 24V power input
	Digital input*4
	Digital output*2
	RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)
LED Indicator	System power and status indicator
Power input	PoE plus (IEEE 802.3at compliant)
	High Power PoE
	AC 24V
Power consumption	PoE plus:
	Max. 19W
	AC 24V:
	Max. 48W (heater on)
	Max. 19W (heater off)
	High Power PoE:
	Max. 48W (heater on)
	Max. 19W (heater off)
Dimensions	Ø: 205 mm x 321 mm
Weight	Net: 3660 g
Casing	Weather-proof IP67- and NEMA 4X-rated metal housing
Casing	Built-in electrical dehumidifier device (SD8364E-M)
Safety Certifications	CE, C-Tick, FCC Class A, NEMA 4X, VCCI, UL
Operating Temperature	-5°C ~ 55°C (PoE Plus)
Operating Temperature	-40°C ~ 55°C (AC 24V / High Power PoE)
Warranty	36 Months
System Requirements
Operating System	Microsoft Windows 7/Vista/XP/2000
Browser	Mozilla Firefox 7~10 (Streaming only)
Browser	Internet Explorer 9.x or 10.x
Other Players	VLC: 1.1.11 or above
Other Players	QuickTime: 7 or above
