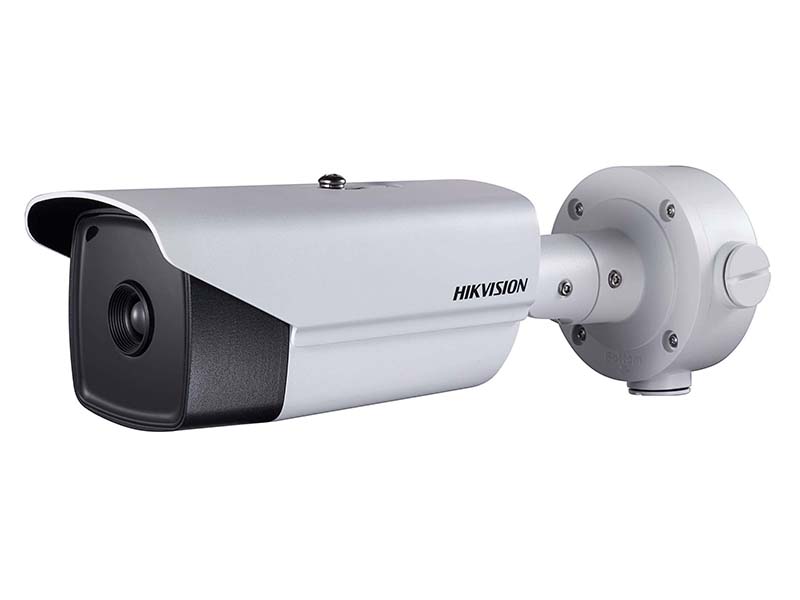

Hikvision DS 2TD2136T 10 IP Bullet Termal Kamera

Özellikler

Smart Function (Thermal Imaging)

Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.)
Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
Reliable temperature exception alarm function
Advanced fire detection algorithm

Thermal Imaging Module Function

384*288 resolution, high sensitivity sensor, support contrast adjustment
Support shutter adjustment in various modes
3D DNR, 15 palettes of color adjustable, image detail enhancement
10mm,15mm and 25mm lens are optional

Teknik Özellikler

Thermal Module
Image sensor	Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution	384*288
Detector Pitch	17um
Response Wavebond	8um to 14um
NETD	< 40mk(@25°C,F#=1.0)
Lens (focal length)	10mm
MRAD	1.70 mrad
Field of View	36°x 27°
Min. Focusing Distance	1m
F number	1.0
Smart Function
VCA	Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA
VCA	rules
Temperature Measurement	Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
Temperature Range	-20 ° C to 550 ° C (-4 ° C to 1022 ° F)
Temperature Accuracy	Max (± 2 ° C, ± 2%)
Fire Detection	Support 10 fire points
Network
Main Stream	50fps(384 × 288)
Sub Stream	50fps(384 × 288)
Third Stream	50fps(384 × 288)
Video Compression	H.264 (Baseline/Main/High Profile) /MJPEG/H.265, H.264+, H.265+
Audio Compression	G .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols	IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I
Protocols	GMP,ICMP,DHCP, PPPoE, Bonjour
Simultaneous live view	Up to 20-ch
User/Host Level	Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures	User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control,
Security Measures	IP address filtering
Integration
Alarm Input	2-ch Inputs (0-5V DC)
Alarm Action	Preset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email
Alarm Action	linkage
Alarm Output	2-ch Relay Output; Support Alarm Linkage
Audio Input	1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
Audio Output	Linear Level; Impedance: 600Ω
Communication Interface	Built-in RJ45; 10M/100M Ethernet Interface
Onboard Storage	Built-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Ethernet	1 RJ45 10M/100M Self-adaptive Ethernet interface
Analog Video Output	1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application Programming	Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
Client	iVMS-4200
Web Browser	IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
General
Wiper	Support
Power	POE+ (802.3at), 24VAC, 12VDC/3A, 8W (20W with De-icing Heater On)
Menu Language	English
Working Temperature/ Humidity	From -40 ° C to 65 ° C (-40 ° F to 149 ° F); Humidity: 90% or Less
Protection Level	IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	314mm × 104mm × 292.7mm (12.36″ × 4.09″ × 11.52″)
Smart Functions Range
Lens (focal length)	10mm
VCA range (Vehicles)	300m
VCA range (humans)	100m
Temperature measurement (Object:2*2m)	234m
Temperature measurement (Object:1*1m)	118m
Fire Detection (Object:2× 2 m)	5880m
Fire Detection (Object:1× 1 m)	294m
Wide Range Coverage
Lens (focal length)	10mm
Detection range (Vehicles)	902m
Detection range (Humans)	294m
Recognition range (Vehicles)	225m
Recognition range (Humans)	74m
Identification range (Vehicles)	113m
Identification range (Humans)	37m
