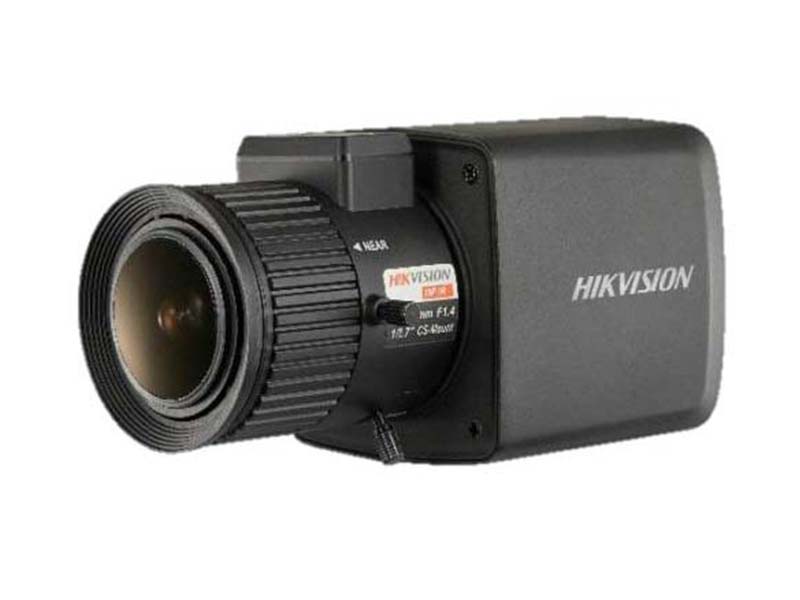

Hikvision DS 2CC12D8T AMM AHD Box Kamera
Özellikler
- 2 Megapixel high-performance CMOS
- Ultra-low light
- 120 dB true WDR, 3D DNR
- 1920 × 1080 resolution
- Up the Coax(HIKVISION-C)
Teknik Özellikler
| Camera | |
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens Mount | C/CS Mount |
| Auto Iris | DC Drive |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120dB |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| CVBS Output | 1Vp-p Composite Output(75Ω/BNC) |
| S/N Ratio | More than 62 dB |
| Up the Coax | Support |
| Menu | |
| Camera ID | On/off (15 characters, position programmable) |
| D/N Mode | Auto / Color / B/W |
| Auto White Balance | Auto / Manual |
| Private Mask | ON/OFF, 4 programmable privacy masks |
| Motion Detection | On/Off, maximum 4 zones |
| BLC | On/Off |
| AGC | Support |
| Anti-flicker | On/ Off |
| Language | English/Chinese |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC ±25%, 24 VAC ±25% |
| Communication | Up the coax |
| Protocol: HIKVISION-C(Coaxitron) | |
| Dimension | 69.29 mm × 54 mm × 56 mm (2.73" × 2.13" × 2.2") |
| Weight | Approx. 175 g (0.39 lb.) |
Hikvision DS 2CC12D8T AMM AHD Box Kamera Pdf Dosyası856.1 KB
