Açıklama

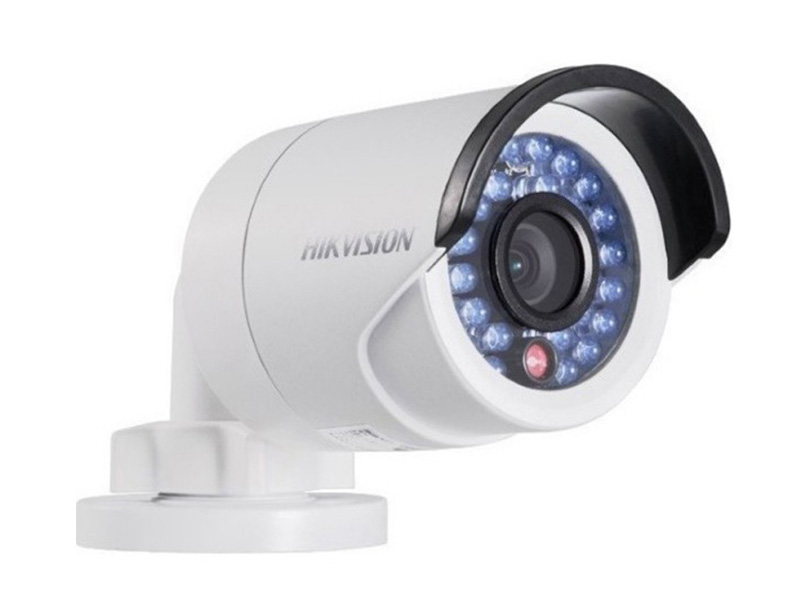

Hikvision DS 2CE16C2T IRP AHD Bullet Kamera
Özellikler
- 1.3 Megapixel high-performance CMOS
- Analog HD output, up to 720P resolution
- True Day/Night
- DNR, Smart IR
- Up to 20m IR distance
- IP66 weatherproof
Teknik Özellikler
| Camera | |
| Image Sensor | 1.3MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1280 (H) × 960 (V) |
| Min. Illumination | 0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8mm, 3.6mm, 6mm optional; Angle of View: 74.6°(3.6mm), 92.6°(2.8mm), 49°(6mm) |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 720p@25fps/720p@30fps |
| HD Video Output | 1 Analog HD output |
| S/N Ratio | More than 62 dB |
| General | |
| Operating Conditions | -40 °C - 60 °C (-40 °F - 140 °F) |
| Humidity 90% or less (non-condensing) | |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Dimension | Φ70×149.5 mm (Φ2.76” ×5.89”) |
| Weight | 300 g |
Hikvision DS 2CE16C2T IRP AHD Bullet Kamera Pdf Dosyası665.6 KB
