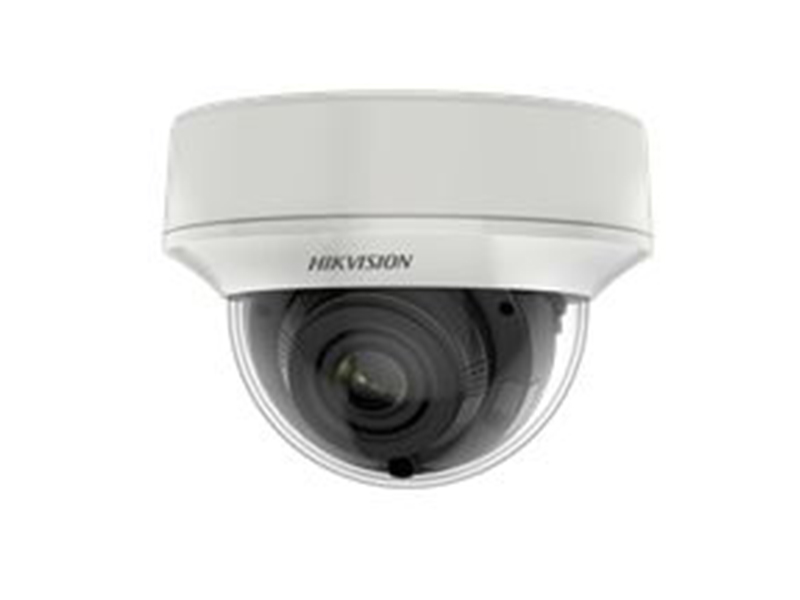

Hikvision DS 2CE56U1T (A)ITZF AHD Dome Kamera

Camera
Image Sensor	8.29 MP high performance CMOS
Signal System	PAL/NTSC
Effective Pixels	3840 (H) × 2160 (V)
Min. Illumination	0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time	PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens	2.7 mm to 13.5 mm motorized vari-focal lens
Lens Mount	φ14
Adjustment Range	Pan: 0° to 340°; Tilt: 0° to 75°; Rotate: 0° to 355°
Day& Night	IR cut filter
Video Frame Rate	TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
Synchronization:	Internal Synchronization
Lens
Horizontal Field of View	108.1° to 45.6°
Menu
D/N Mode	Auto/Color/BW (Black and White)
BLC	Support
AGC	Support
Digital WDR	Yes
Language	English
Function	Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Out	1 HD analog output
General
Material	Plastic
Operating Conditions	-40 °C to 50 °C (-40 °F to 122 °F), humidity: 90% or less (non-condensation)
Power Supply	9 VDC to 15 VDC ( -A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC)
Power Consumption	Max. 6.4 W (-A: Max. 8.2 W)
IR Range	Up to 60m
Communication	Up the coax
Communication	Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension	Ø 136 mm × 101.94 mm (Ø 5.35" × 4.01")
Weight	Approx. 450 g (0.99 lb.)
