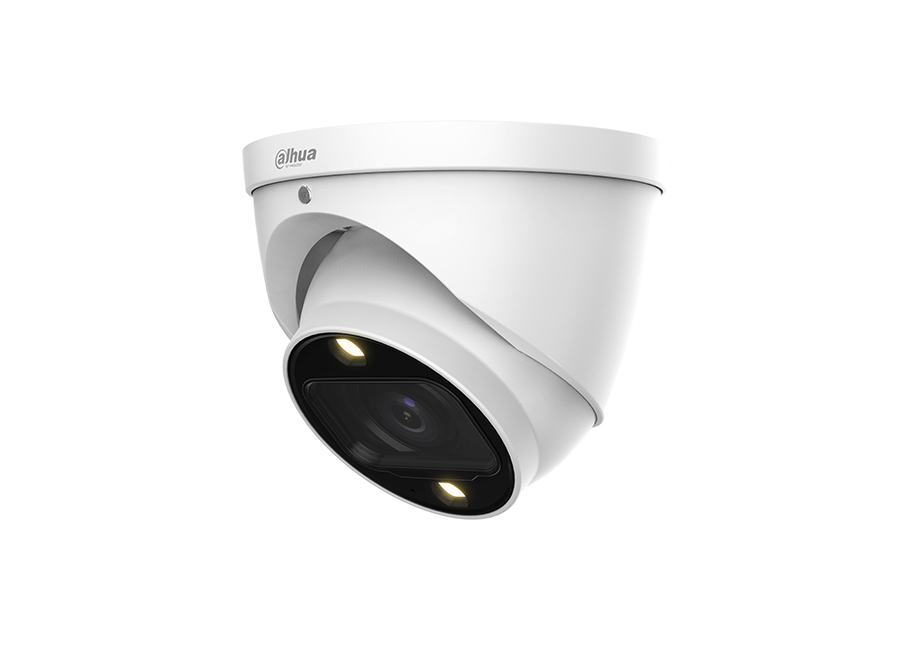

Dahua HAC-HDW1239T-Z-A-LED-DP HDCVI Eyeball Kamera

Özellikler

* The parameters and datasheets below can only be applied to 1239-S2 series

24/7 color imaging, Max. 30 fps@1080p>;
Super Adapt, 130 dB true WDR, 3D NR
Auto focus, 2.7 mm–13.5 mm motorized lens
40 m illumination distance
Built-in mic
CVI/CVBS/AHD/TVI switchable
IP67, AC 24V/DC 12V

Teknik Özellikler

Camera
Image Sensor	1/2.8" CMOS
Max. Resolution	1920 (H) × 1080 (V)
Pixel	2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s
	NTSC: 1/30 s–1/100000 s
S/N Ratio	>65 dB
Min. Illumination	0.001 Lux/F1.2, 30IRE, 0 Lux LED on
Illumination Distance	40 m (131.2 ft)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2
Pan/Tilt/Rotation Range	Pan: 0°–360°
	Tilt: 0°–78°
	Rotation: 0°–360°
Lens
Lens Type	Motorized vari-focal
Auto Focus	Yes
Mount Type	φ16
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.2
Field of View	Diagonal: 39°–130°
	Horizontal: 34°–107°
	Vertical: 19°–56°
Iris Type	Fixed iris
Close Focus Distance	1.5 m (4.9 ft)
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.7 mm	44.9 m (147.3 ft)	17.9 m (58.7 ft)	8.9 m (29.2 ft)	4.5 m (14.8 ft)
	13.5 mm	128.6 m (421.9 ft)	51.4 m (168.6 ft)	25.7 m (84.3 ft)	12.8 m (42 ft)
Video
Frame Rate	CVI:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	AHD:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	TVI:
	PAL: 1080p@25 fps;
	NTSC: 1080p@30 fps;
	CVBS:
	PAL: 960 × 576H;
	NTSC: 960 × 480H;
Resolution	1080P (1920 × 1080); 960H (960 × 576/960 × 480);
BLC	BLC/WDR/HLC
WDR	130 dB
White Balance	Auto; Area WB
Gain Control	Auto; manual
Noise Reduction	3D NR
Smart Light	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 area, rectangle)
Certifications
Certifications	CE (EN55032, EN55024, EN50130-4)
	FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
	UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in mic
Power
Power Supply	AC 24V ±25%/DC 12V ±10%
Power Consumption	Max 8.2W (12V DC, LED on)
Environment
Operating Temperature	–30°C to +60°C (–22°F to 140°F);< 95% (non-condensation)
Storage Temperature	–30°C to +60°C (–22°F to 140°F);< 95% (non-condensation)
Protection Grade	IP67
Structure
Casing	Metal throughout the whole casing
Camera Dimensions	φ122 mm × 104.8 mm (φ4.8" × 4.13")
Net Weight	0.57 kg (1.26 lb)
Gross Weight	0.72 kg (1.59 lb)
