Açıklama

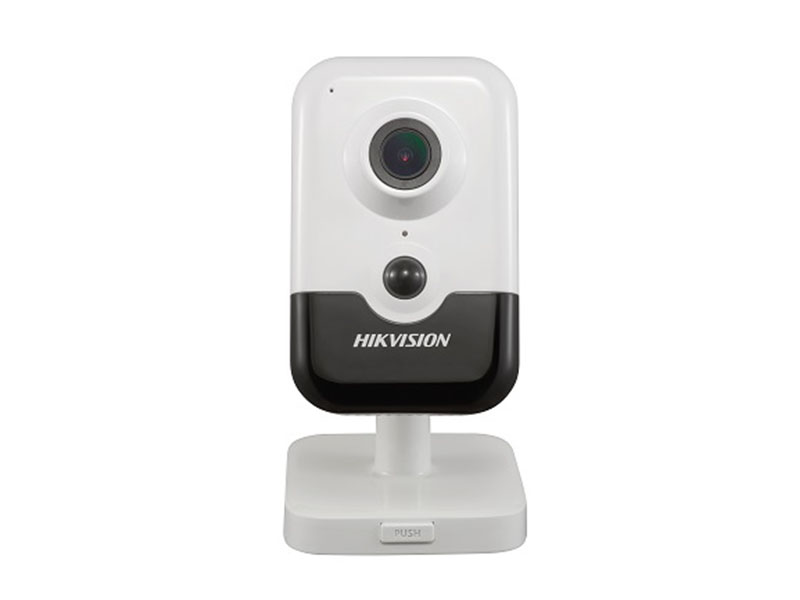

Hikvision DS 2CD2425FWD IW IP Küp Kamera

Özellikler

1920 × ‍1080@30fps
IR: 10 m
PIR: 10m
H.265, H.265+
120dB WDR
Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
PoE
EXIR
Wi-Fi (Optional)

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
Slow shutter	Support
Objektif Hızı	1/3 s to 1/100,000 s
Lens	2.8 mm: Horizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
Lens Kurulumu	M12
Ayarlanan Aralık	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night	IR cut filter with auto switch
Geniş Dinamik Aralık	120 dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
Video Sıkıştırma	H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Hızı	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Üçüncü Akım	Yes
Max. Image Resolution	1920 x 1080
Ana Akış	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
Ana Akış	60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Çerçeve Hızı	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Çerçeve Hızı	60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Üçüncül Akış	50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
Üçüncül Akış	60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Görüntü İyileştirme	BLC/3D DNR
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
ROI	Support 1 fixed region for main stream and sub-stream separately
Gündüz / Gece Anahtarı	Auto/Scheduled
Network
Ağ Depolama	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
General Function	One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
General Function	mask, Watermark, IP address filtering
Sistem Uyumluluğu	ONVIF (Profile S, Profile G), ISAPI
Interface
Audio	1 built-in mic, 1 built-in speaker, mono sound
İletişim Arayüzü	1 RJ45 10M / 100M Ethernet interface
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılamaları	Scene change detection
Tanıma	Face Detection
Wi-Fi Şartnamesi (-W)
Kablosuz Standartlar	IEEE802.11b, 802.11g, 802.11n
Frekans Aralığı	2.412 GHz to 2.4835 GHz
Kanal Bant Genişliği	20/40MHz Support
İletim Hızı	11b: 11Mbps
	11g: 54Mbps
	11n: up to 150Mbps
Kablosuz Menzil	50m(depend on environment)
Protokoller	802.11b: DQPSK, DBPSK, CCK
Protokoller	802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK
General
Çalışma Sıcaklığı	-10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply	12 V DC ± 20%, PoE (802.3af, class 3)
GÜç Tüketimi	12 VDC, 0.38A, max. 7W
	PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Aralık	Up to 10m
PIR	10m
Boyutlar	102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
Ağırlık	Camera: Approx. 128 g (0.28 lb)
