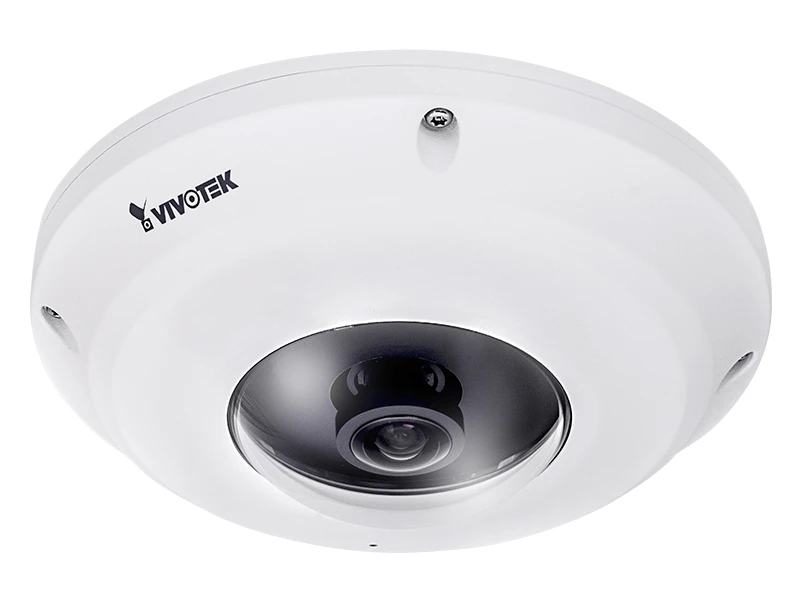

Vivotek FE9381 EHV IP HD Panoramik Kamera
Özellikler
- H.265 Compression Technology
- 5-Megapixel CMOS Sensor
- 30 fps @ 1920x1920
- 1.47 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- WDR Pro for Unparalleled Visibility in High Contrast Environments
- Smart Stream II to Optimize Bandwidth Efficiency
- EN50155 Compliance for Professional Mobile Surveillance
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- ePTZ for Data Efficiency
- Built-in 802.3af Compliant PoE
- Support Client Side Dewarping
- Pixel Counter for Image Clarity Measurement
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/1.8" Progressive CMOS in 3096x2094 |
| Maximum Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.47 mm |
| Aperture | F2.2 |
| Field of View | 180° (Horizontal) |
| 180° (Vertical) | |
| 180° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.18 Lux @ F2.2 (Color) |
| 0.001 Lux @ F2.2 (B/W) | |
| Pan/tilt/zoom Functionalities | ePTZ: |
| 48x digital zoom (4x on IE plug-in, 12x built in) | |
| On-board Storage | Slot type: Micro SD/SDHC/SDXC card slot |
| Seamless Recording | |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | H.265 & H.264: |
| 30 fps @ 1920x1920 | |
| MJPEG: | |
| 12 fps @ 1920x1920 | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 42.3 dB |
| Dynamic Range | 100 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream II |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction; Adjustable image size, quality and bit rate, defog; Pixel counter |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphone |
| External microphone input | |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS, NTCIP |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD Card | |
| General | |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input*1 | |
| Audio output*1 | |
| DC 12V power input*1 | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V |
| IEEE 802.3at PoE Class 0 | |
| Power Consumption | Max. 13 W |
| Dimensions | Ø 145 x 50 mm |
| Weight | 548 g |
| Casing | Weather-proof IP66-rated housing |
| Vandal-proof IK10-rated metal housing | |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155 |
| Operating Temperature | Starting Temperature: -25°C ~ 55°C (-13°F ~ 131°F) |
| Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) | |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) |
| Internet Explorer 7/8/9/10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, VAST |
| Others | Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, I/O cable, mounting bracket, software CD |
Video
Vivotek FE9381 EHV IP HD Panoramik Kamera Pdf Dosyası436.96 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 5MP
