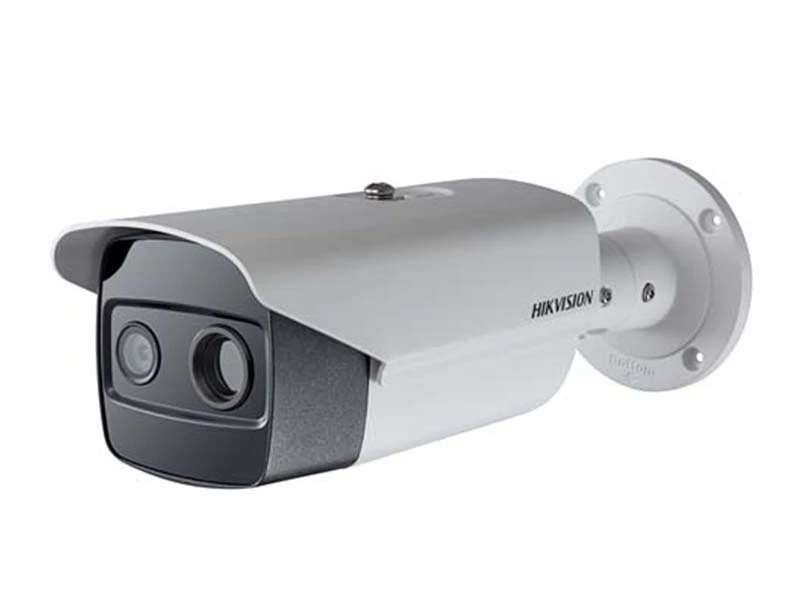

Hikvision DS 2TD2636 10 IP Bullet Termal Kamera
Özellikler
- Smart Function (Thermal Imaging)
- Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (0.04°C), F#=1.0)
- Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
- Reliable temperature exception alarm functio
- Advanced fire detection algorithm
- Bi-spectrum image fusion, picture in picture preview
- Thermal Imaging Module Function
- 384 × 288 resolution sensor, high sensitivity sensor, support contrast adjustment
- Shutter adjustment in various modes
- 3D DNR, 15 palettes of color adjustable, image detail enhancement
- Mirror image, digital zoom ×2, ×4, ×8, and local output
Teknik Özellikler
| Thermal Module | |
| Image sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max. Resolution | 384*288 |
| Detector Pitch | 17um |
| Response Wavebond | 8um to 14um |
| NETD | < 40mk(@25°C,F#=1.0) |
| Lens (focal length): | 10mm |
| MRAD | 1.70 mrad |
| Field of View | 37.7°× 28.7° |
Min. Focusing Distance | 1m |
| F number | 1.0 |
| Optical Camera | |
| Image Sensor | 1/2.8’’ Progressive Scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.002 lux @ (F1.5 , AGC On ) |
| B/W : 0.0002 lux @ (F1.5 , AGC On ) | |
| Focal Length | 6 mm |
| Field of View | 52.8° - 30.0° (Wide-Tele) |
| WDR | Digital |
| Shutter Speed | 1 to 1/100,000s |
| Day & Night | IR Cut Filter with Auto Switch |
| Image Function | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture | Combins details of thermal and optical image PIP, overlay thermal image on optical image |
| Smart Function | |
| VCA | Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA |
| rules | |
| Temperature Measurement | Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line) |
| Temperature Range | -20 ° C to 150 ° C (-4 ° C to 302 ° F) |
| Temperature Accuracy | ±8 ° C (14.4 ° F) |
| Fire Detection | Support 10 fire points |
| Infrared | |
| IR Distance | Up to 40m |
| IR IntenSity and Angle | Auto Adjust |
| Network | |
| Main Stream | Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720) | |
| Thermal: 50fps (384×288) | |
| Sub Stream | Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720) | |
| Thermal: 50fps (384×288) | |
| Video Compression | H.264/MJPEG,H.264+ encoding with Baseline/Main/High Profile |
| Audio Compression | G .711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols | IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,I |
| GMP,ICMP,DHCP, PPPoE, Bonjour | |
| Simultaneous live view | Up to 20-ch |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures | User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, |
| IP address filtering | |
| Integration | |
| Alarm Input | 2-ch Inputs (0-5V DC) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Alarm Output | 2-ch relay outputs, alarm response actions configurable |
| Audio Input | 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10% |
| Audio Output | Linear Level; Impedance: 600Ω |
| Onboard Storage | Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording |
| Ethernet | 1 RJ45 10M/100M Self-adaptive Ethernet interface |
| Application Programming | Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform |
| Client | iVMS-4200 |
| Web Browser | IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages |
| General | |
| Power | 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4) |
| Power Consumption | 24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 10W (20 W with De-icing Heater On), |
| PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A | |
| Menu Language | English |
| Working Temperature/ Humidity | From -40° C to 60° C (-40° F to 140°F); Humidity: 90% or Less |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions | 314mm × 104mm × 292.7mm (12.36″ × 4.09″ × 11.52″) |
| Weight | Approx. 1.55Kg (3.42lb) |
| Smart Functions Range | |
| Lens (focal length) | 10mm |
| VCA range (Vehicles) | 300m |
| VCA range (humans) | 100m |
| Temperature measurement (Object:2*2m) | 234m |
| Temperature measurement (Object:1*1m) | 118m |
| Fire Detection (Object:2× 2 m) | 588m |
| Fire Detection (Object:1× 1 m) | 294m |
| Wide Range Coverage | |
| Lens (focal length) | 10mm |
| Detection range (Vehicles) | 902m |
| Detection range (Humans) | 294m |
| Recognition range (Vehicles) | 225m |
| Recognition range (Humans) | 74m |
| Identification range (Vehicles) | 113m |
| Identification range (Humans) | 37m |
Teknik Kısa
Depolama : Var
